    14:20:43 $BED_MESH_CALIBRATE
    14:20:52 // probe at 0.000,55.000 is z=-0.368359
    14:20:58 // probe at 0.000,55.000 is z=-0.368359
    14:21:04 // probe at 0.000,55.000 is z=-0.366016

    14:21:18 // probe at 39.001,55.000 is z=-0.231641
    14:21:24 // probe at 39.001,55.000 is z=-0.231641
    14:21:30 // probe at 39.001,55.000 is z=-0.233594

    14:21:43 // probe at 78.002,55.000 is z=-0.155078
    14:21:49 // probe at 78.002,55.000 is z=-0.155859
    14:21:54 // probe at 78.002,55.000 is z=-0.158203

    14:22:07 // probe at 117.003,55.000 is z=-0.093359
    14:22:13 // probe at 117.003,55.000 is z=-0.090625
    14:22:18 // probe at 117.003,55.000 is z=-0.090234

    14:22:31 // probe at 155.997,55.000 is z=-0.077344
    14:22:37 // probe at 155.997,55.000 is z=-0.082812
    14:22:42 // probe at 155.997,55.000 is z=-0.080469

    14:22:54 // probe at 194.998,55.000 is z=-0.074609
    14:23:00 // probe at 194.998,55.000 is z=-0.074219
    14:23:06 // probe at 194.998,55.000 is z=-0.074219

    14:23:19 // probe at 194.998,139.998 is z=-0.148828
    14:23:25 // probe at 194.998,139.998 is z=-0.149609
    14:23:31 // probe at 194.998,139.998 is z=-0.149219

    14:23:44 // probe at 155.997,139.998 is z=-0.102344
    14:23:49 // probe at 155.997,139.998 is z=-0.102734
    14:23:55 // probe at 155.997,139.998 is z=-0.101562

    14:24:07 // probe at 117.003,139.998 is z=-0.121484
    14:24:13 // probe at 117.003,139.998 is z=-0.121094
    14:24:19 // probe at 117.003,139.998 is z=-0.121094

    14:24:32 // probe at 78.002,139.998 is z=-0.124219
    14:24:37 // probe at 78.002,139.998 is z=-0.128906
    14:24:43 // probe at 78.002,139.998 is z=-0.128906

    14:24:56 // probe at 39.001,139.998 is z=-0.223047
    14:25:02 // probe at 39.001,139.998 is z=-0.219922
    14:25:08 // probe at 39.001,139.998 is z=-0.219141

    14:25:21 // probe at -0.000,139.998 is z=-0.248047
    14:25:27 // probe at -0.000,139.998 is z=-0.248047
    14:25:33 // probe at -0.000,139.998 is z=-0.248047

    14:25:48 // probe at -0.000,225.002 is z=-0.281250
    14:25:53 // probe at -0.000,225.002 is z=-0.280078
    14:25:59 // probe at -0.000,225.002 is z=-0.280078

    14:26:13 // probe at 39.001,225.002 is z=-0.222656
    14:26:19 // probe at 39.001,225.002 is z=-0.222656
    14:26:25 // probe at 39.001,225.002 is z=-0.223437

    14:26:38 // probe at 78.002,225.002 is z=-0.161719
    14:26:44 // probe at 78.002,225.002 is z=-0.160156
    14:26:49 // probe at 78.002,225.002 is z=-0.160547

    14:27:02 // probe at 117.003,225.002 is z=-0.103125
    14:27:08 // probe at 117.003,225.002 is z=-0.105078
    14:27:14 // probe at 117.003,225.002 is z=-0.105078

    14:27:26 // probe at 155.997,225.002 is z=-0.086328
    14:27:32 // probe at 155.997,225.002 is z=-0.088281
    14:27:37 // probe at 155.997,225.002 is z=-0.088281

    14:27:50 // probe at 194.998,225.002 is z=-0.124609
    14:27:56 // probe at 194.998,225.002 is z=-0.123437
    14:28:01 // probe at 194.998,225.002 is z=-0.125781

    14:28:01 // Mesh Bed Leveling Complete
    14:28:01 // Bed Mesh state has been saved to profile [default]
    // for the current session. The SAVE_CONFIG command will
    // update the printer config file and restart the printer.



    Diese Daten sind nicht be oder überarbeitet außer Leerzeile für bessere Lesbarkeit eingefügt. Dieses Leveling kann ich auch gerne per Anydesk zeigen (LIVE) im Fall jemand glaubt mir das nicht.

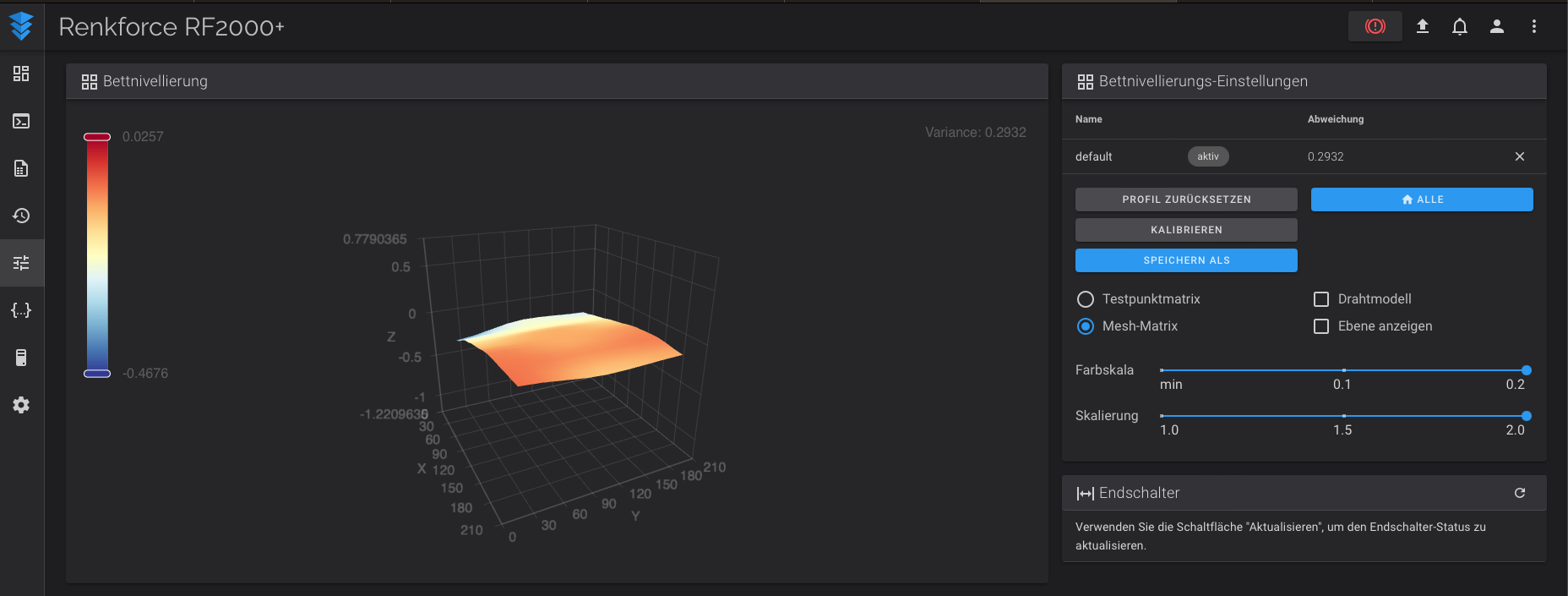

    Hier noch das Bild dazu



    Leveling Rf2000
